Your cat walks up to the feeder, but the lid stays closed. A second approach works. If that sounds familiar, the problem may involve where the implanted chip sits, how your cat approaches, or electrical interference nearby.
Improving your microchip feeder's practical reading distance starts with compatibility and positioning. Raising the feeder may help a chip reach a more favorable reading area, but it does not make the reader more powerful or guarantee a longer range.
Here is a practical way to troubleshoot your ePawDen setup, one change at a time.
Why reading distance varies
A passive implanted microchip has no battery. It receives energy from the reader’s field and sends back its identification number. The distance, angle, and relationship between the two antennas affect that exchange. Microchip Technology's antenna design guidance [1] explains these factors.
Your cat’s nose is also not where the chip is. In the United States, pet microchips are typically implanted beneath the skin between the shoulder blades, according to the American Veterinary Medical Association [2].
A nose close to the bowl therefore does not tell you how close the implant is to the reader.
1 Confirm the chip is compatible and paired
The ePawDen Microchip Pet Feeder supports compatible 15-digit ISO FDX-B implanted microchips operating at 134.2 kHz. It does not support 9-digit or 10-digit chips. An RFID collar tag is included for pets without a compatible implant.
Check the chip’s type using your pet’s records or ask your veterinary clinic. A 15-digit number alone is not a substitute for confirming the format and frequency.
Next, follow the supplied pairing instructions. If the feeder has never recognized this particular implant, establish compatibility and pairing before experimenting with height. Keep other pets away while you work so their presence does not complicate the test.
2 Make sure your cat enters the frame
ePawDen activates microchip recognition when a pet enters the front frame and interrupts an infrared sensor. A cat standing just outside it may not have triggered a reading yet.
Give your cat a clear, comfortable approach. Avoid a cramped corner that encourages reaching in from an awkward angle, and let a hesitant cat investigate gradually.
For a collar-tag test, ePawDen’s setup FAQ recommends holding the tag inside your fist and placing your hand inside the frame. Waving a loose tag outside the opening is not an equivalent test. Keep clear of moving parts.

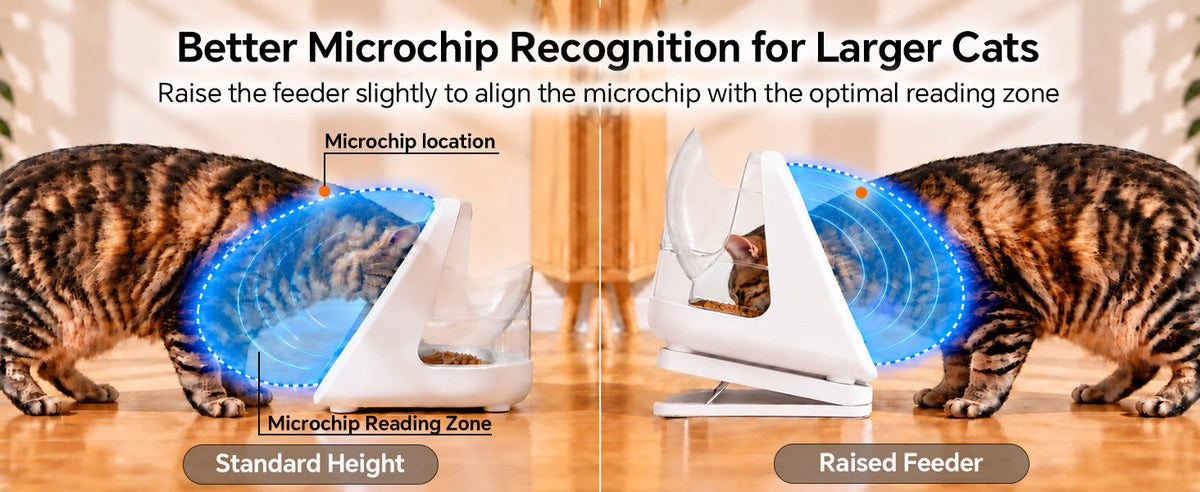

3 Try a modest height adjustment
If your cat’s implant sits high around the neck or shoulders, it may pass above the feeder’s central reading area. Bringing the feeder up slightly may improve the relationship between the implant and reader as your cat approaches.
The ePawDen Tilt Riser provides a raised position with a gentle forward tilt. Check whether that position suits your individual cat. Taller cats are not all built alike, and raising the feeder too far could make access less comfortable.
Watch several natural approaches before and after the adjustment. Look for comfortable access and more consistent opening, rather than a single successful attempt.
The potential benefit comes from changing alignment. A riser does not increase the antenna’s power, enlarge the opening, or change which microchips are supported. Avoid unstable stacks or supports that can slide.
4 Check for nearby electrical interference
Some power adapters and electronic devices produce electrical noise that can reduce RFID reading performance. Texas Instruments identifies switch-mode power supplies and other equipment as possible interference sources in its low-frequency RFID guidance [3].
Try a simple comparison:
- Charge the feeder according to its instructions, then test using its built-in battery with the charging cable disconnected
- Move nearby chargers, power adapters, and other electronics away from the feeding area
- Try another location if the feeder sits beside a large metal surface
- Keep the cat’s approach and feeder height similar while comparing results
An improvement suggests the original location or power setup deserves closer attention. It does not establish that every nearby device is a problem. There is no single separation distance that works for every combination of equipment.
5 Let natural head movement change the angle
Microchip orientation affects coupling with the reader’s magnetic field. As your cat lowers or turns its head, the implant’s position and angle relative to the reader may change.
That movement may bring the chip into a more favorable position and explain why one approach succeeds after another does not. It is a possibility, not a guarantee that repeated movement will produce a read.
Let your cat approach naturally. Do not twist the cat’s head, press on the implant, or repeatedly push the cat into the frame. If recognition requires an awkward posture, revisit the setup.
6 Compare with the included RFID tag
Test the included tag using the method above. If it works consistently while the implant does not, that is a useful clue for troubleshooting compatibility, implant position, or approach angle. It does not prove every part of the feeder is fault-free.
If both struggle, recheck power, pairing, placement, and the instructions. For persistent problems, contact ePawDen support with a short video of the approach and the changes you tried.
Your veterinary clinic can also scan the implant and check its location. A successful veterinary scan does not guarantee the same result from a fixed feeder with different reader geometry.
Aim for dependable everyday access
The best setup is one your cat can use comfortably across repeated meals. Confirm compatibility, trigger the reading correctly, then compare height and location one at a time.
Keep an accessible feeding alternative available while troubleshooting and observe actual food intake. If your household’s main challenge is protecting separate meals, our guide to microchip feeders versus timed automatic feeders explains how selective access fits into that routine.
References
1 Microchip Technology. Antenna Circuit Design for RFID Applications AN710. Antenna coupling, orientation, and read range.
2 American Veterinary Medical Association. Microchipping FAQs for pet owners. Implanted microchip operation and typical placement.
3 Texas Instruments. RFID FAQs. Low-frequency RFID and environmental interference.
